ELUXI_High_Power_Optical_Fibre_Bundles

DETAILS & DOWNLOADS

Hexagon Fused Fused Bundles High Power Optical Fibre Bundles LWL Cables & Bundles

Together with its partners ELUXI is able to offer a comprehensive range of solutions in this area. If you cannot find what you are looking for from the information below, please contact us directly.

OPTICAL FIBRE

INDUSTRIAL FIBRE BUNDLES

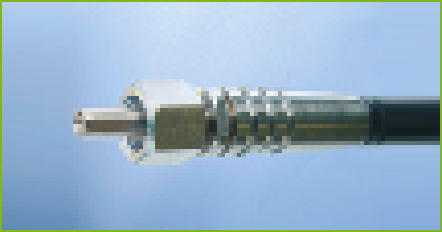

HPC high-power cables

Features

Maximum power transmission of up to 600 W CW.
Compatible with the systems available on the market.
Fibres protected by a metal tube with plastic jacket.
Standard lengths: 3 m and 5 m.
Other lengths can be obtained on request
Optimised for your application

HPC-Cables:

he maximum power transmission of the connectors is 600 W CW. The connectors are compatible with already existing systems on the market. The fibre is protected either with a metal protection tube or a metal protection tube coated with plastic

Applications

Welding plants
Welding devices in the jewellery industry
Transmission of laser energy

Standard-Fibres

Fibre Core Cladding Jacket

H200 200 µm ± 2% 720 µm ± 2% 1500 µm ± 5%
H400 400 µm ± 2% 720 µm ± 2% 1500 µm ± 5%
H600 600 µm ± 2% 720 µm ± 2% 1500 µm ± 5%

High Power Optical Cables

HPC high-power cables LightguideOptics Brochure
