HEXAGON FUSED BUNDLES ®

INDUSTRIAL FIBRE BUNDLES

Hexagon Fused Bundles ®

Features

Higher packing densities
Greater transmissions
Higher power and temperature capabilities.

Applications

Spectroscopy
Semiconductor wafer inspection
Analytical instrumentation
Pyrometry
Sensor technology
UV curing

Hexagon Fused Bundles ®

Hexagon Fused Bundles®

These offer completely new possibilities for your high-power or high-temperature range applications.

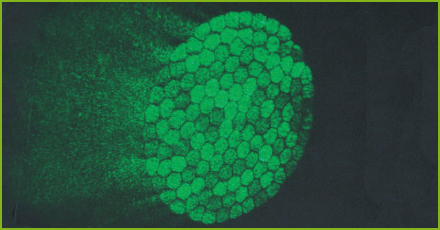

The patented technology enables the elimination of he inter-fibre spaces. The packaging factor of the fibre cores is thus considerably increased. This improves dramatically the transmission.

Manufacturing without any epoxy or adhesives permits a wider use of our products especially in the UV range and high-temperature range.

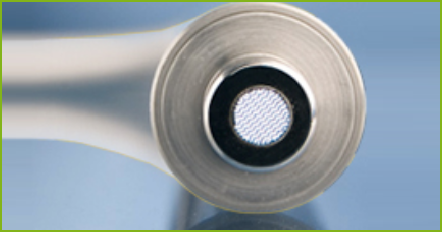

The fused end fibre are a high end solution for UV and IR spectroscopy replacing liquid light guides.

The LGO fused end bundles provide you with completely new possibilities for your applications within high power fields or high temperature fields.

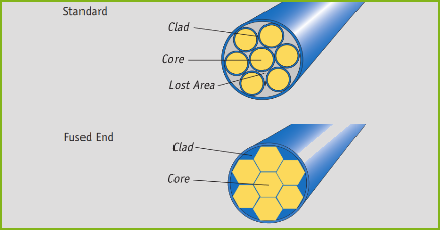

By our patented technology we are able to eliminate the gaps between the fibres which occur when bundling. Therefore the packing density of the fibre cores increases. This improves the transmission considerably. As no glue is used especially within the UV range the fields of application broaden. The LGO fused end bundles apply to temperature ranges up to 1000 °C.

Applications

Spectroscopy
Semiconductor wafer inspection
Analytical instrumentation
Pyrometry
Sensor technology
UV curing

Hexagon Fused Bundles ® LightguideOptics Brochure
