ASC3 AND FIBER SCANHEAD

OEM SUBSYSTEMS

ASC3 AND FIBER SCANHEAD

ASC-3 ontroller & Fiber scan head – a subsystem with integrated fibre laser of currently 20 – 40 Watts of average laser output power, pulsed in the ns or µm range up to continuous operation. These systems combined with a suitable scan head, are the optimal and compact combination for laser micro material processing.

Besides all conceivable marking tasks, manifold applications show the full potential of such subsystem combinations. Welding, cutting, ablation, micro hardening, structuring or the modification of technological features of functional surfaces in general – many processing tasks are possible.

Example of product combination

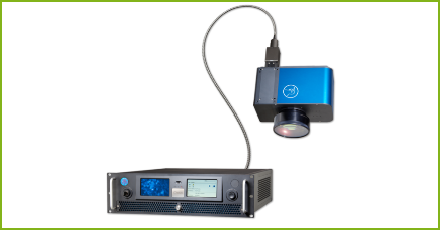

ASC-3 & Fiber RHINO 16

Typical field of application

emitter wrap through solar cells
grey scale dithering card marking
micro surface structurin

ASC-3 system controller InScript software Fiber RHINO scan head

ASC3 AND FIBER SCANHEAD

In a Nutshell

ASC-3 controller with integrated laser
Fiber RHINO 16 scan head
optimized for drilling
